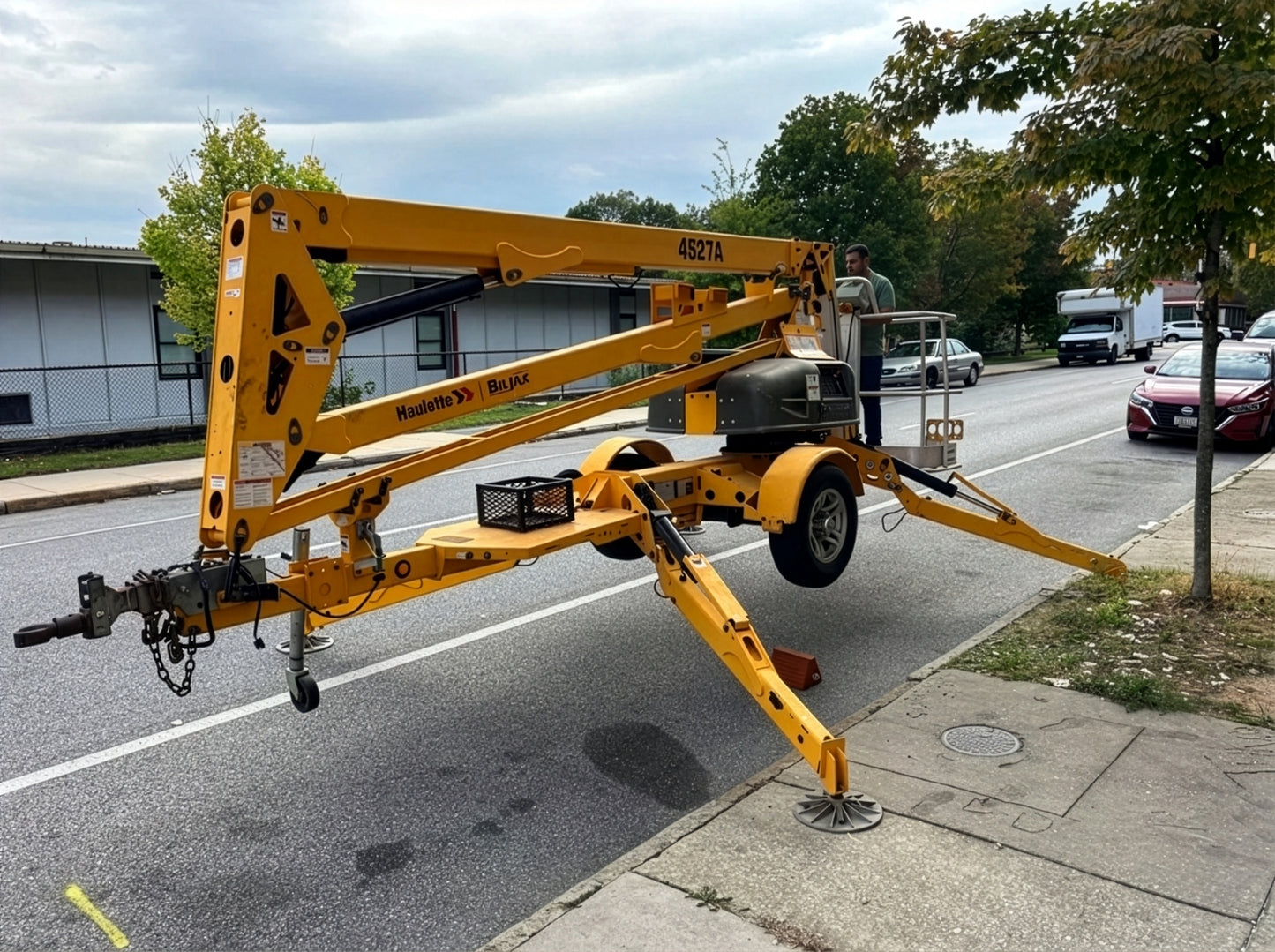

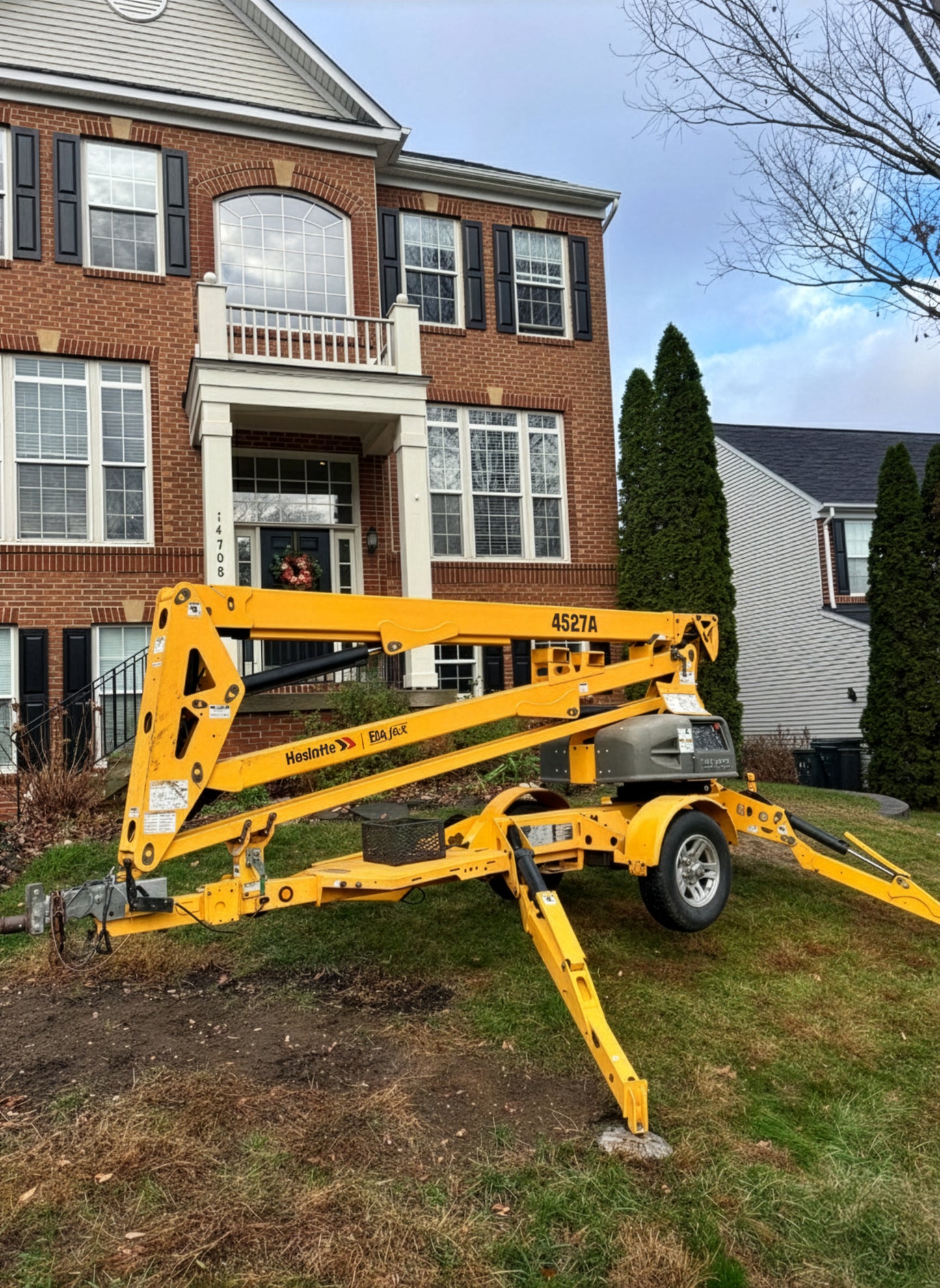

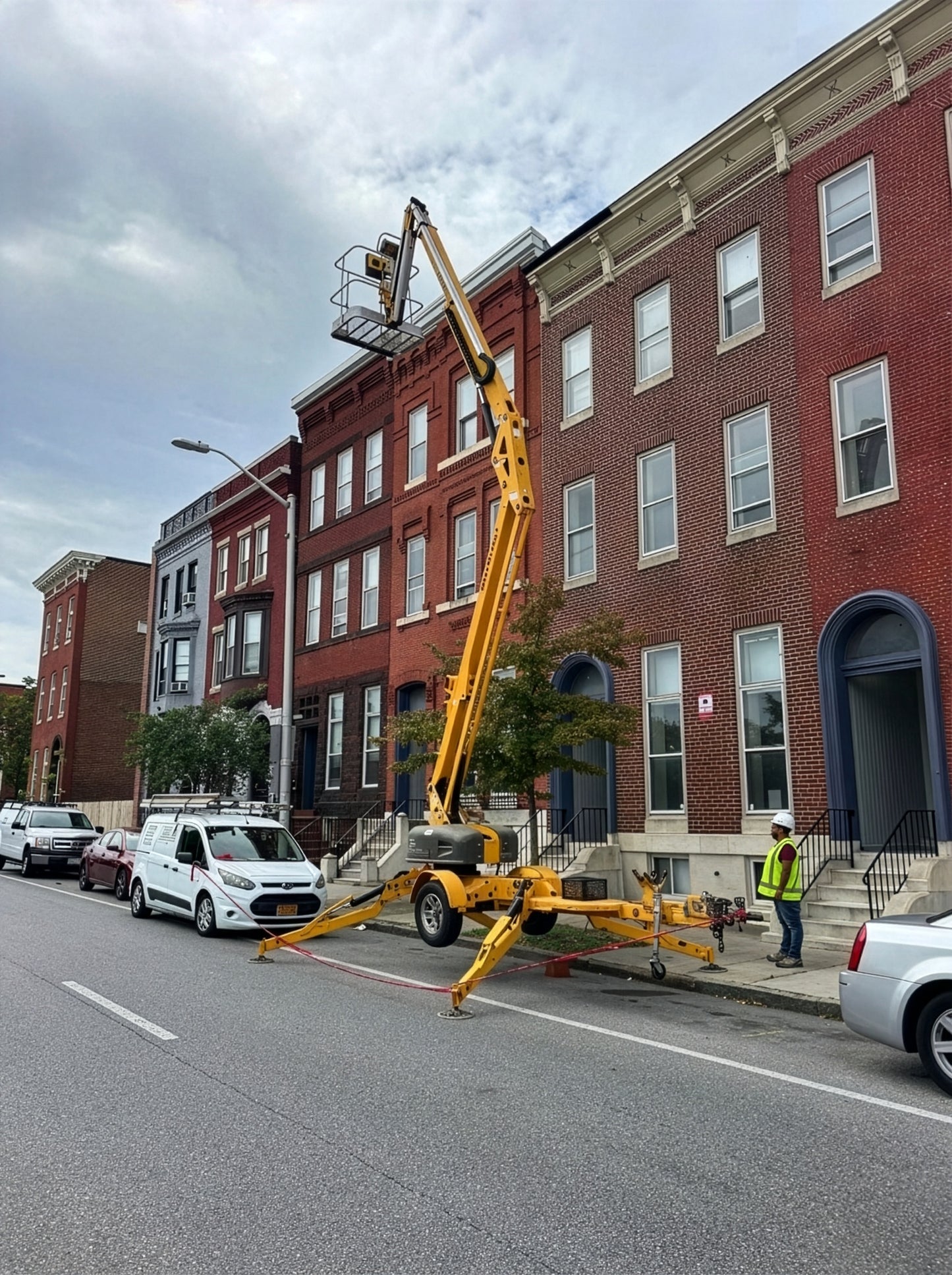

Haulotte 4527A, 45ft - Towable Boom Lift

• Delivers a full 51 ft working height and 45 ft platform height in a lightweight 4,200 lb package.
• Easily towed by any ½-ton pickup (no CDL required) at highway speeds up to 65 mph.
• Outstanding 27 ft horizontal outreach and 20 ft 9 in up-and-over clearance for reaching over obstacles.
• Articulating jib with 150° vertical range (+70°/-80°) for precise positioning in tight spaces.
• Hydraulic outriggers with 12.5° leveling capability – stable setup even on uneven ground.
• Quiet, zero-emission 24V DC battery power (4 × 6V 245 Ah batteries) – ideal for indoor and noise-sensitive jobs.
• Compact stowed size (20 ft 8 in L × 5 ft 6 in W × 6 ft 8 in H) fits through gates and stores easily.
• 500 lb unrestricted platform capacity and spacious 4 ft 1 in × 2 ft 9 in platform.

• Working height: 51 ft
• Platform height: 45 ft
• Horizontal outreach (from centerline): 27 ft
• Horizontal outreach (from edge of footpad): 21 ft
• Up and over height: 20 ft 9 in
• Lift capacity : 500 lb
• Length - stowed: 20 ft 8 in
• Width stowed: 5 ft 6 in
• Height stowed: 6 ft 8 in
• Platform size: 4 ft 1 in x 2 ft 9 in
• Widest Point: 13 ft 9 in
• Widest Point: 13 ft 6 in
• Turntable rotation: 350° non-continuous
• Jib - length: 4 ft 3 in
• Jib - Vertical Motion: 150° (+ 70 / - 80)
• Tow speed rating: 65 mph
• Leveling capability: 12.5
• Tire size: ST 225 / 75 R15
• Power source: 4 x 6 V 245 amp-hr
• Tongue weight (no options): 290 lb
• Weight (no options): 4,200 lb

Download Full Specifications
